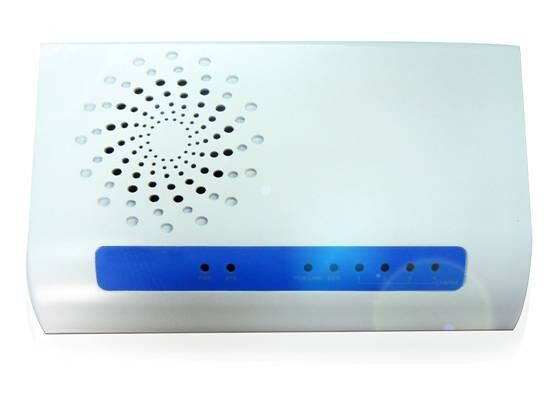

GPON ONT GN2000-04GS-2V 4*GE+2POTS

Product

EN2000-04G-2V

Port

Ÿ   1 GEPON interface

Ÿ   4Ethernet LAN port(10/100/1000 Base-T

auto-sensing)

Ÿ   2 POTS Interface

GPON Feature

Ÿ   ITU-T G.984 GPON standard

Ÿ   GEM encapsulation

Ÿ   DBA(Dynamic Bandwidth Assignment)

Ÿ   40 T-CONT and 256*GEM Port

Ÿ   Class B+ optical power budget

Ÿ   Mapping from port-based VLAN to GEM port

Ÿ   FEC(Forward Error Correction)

Ÿ   OAM(Operations,Administration and Maintenance),PLOAM(Physical Layer OAM),OMCI

Ÿ   Downlink 128 bit AES(Advanced Encryption Standard)encryption

Ÿ   Power-down alarm

Dimension(L×W×H)

Ÿ   268(L)×213mm(W)×34mm(H)

Weight

Ÿ   <1.4kg

Voltage

Ÿ   Power adaptor (220AVC input-12VDC/2A output)

Max power consumption

Ÿ   <15W

Buffer

Ÿ   1Mbit

Flow control

Ÿ   IEEE 802.3x flow control(full duplex)

Ÿ   Back pressure flow control(half duplex)

Working temp

Ÿ   0℃～50℃

Working

Ÿ   5% ～ 95% (no condensing)

MAC table

Ÿ    1K

VLAN

Ÿ   Port-based VLAN and IEEE 802.1Q VLAN

Ÿ   VID and PVID

Ÿ   Configure tag attribution based on port＋VLAN

Broadcast storm suppression

Ÿ   Configure qty of broadcast packet

STP

Ÿ   IEEE 802.1d/1s/1w

Port aggregation

Ÿ   Support

Bandwidth control

Ÿ   Support 64K to100M

Mirror

Ÿ   Port mirroring

QoS

Ÿ   Port-based/802.1p/IP-TOS priority

Ÿ   4 priorities control

Upgrade

Ÿ   Xmodem, TFTP

Management

Ÿ   GN.Link cluster management and remote upgrade(Client end)

Ÿ   Telnet remote configuration

Ÿ   SNMP

Ÿ   WEB

Security

Ÿ   The administrator's user password authentication

Ÿ   Port binding,limit MAC address on each port

Ÿ   802.1x

Maintenance

Ÿ   Debug information output

Ÿ   PING

Ÿ   System log
